DwightR Grasshopper
|
Just completed a blower wheel and belt replacement, but heating element now only comes on for about 2-5 secs, then clicks and shuts off. Overheating? Did a lot of cleaning up with shop vac and was very careful to avoid bumping element. Also work to blow out all the dust from the element area. Air discharge from vent is strong--doesn't seem to be any blockages. Been without dryer for 5 days while reading your site and ordering parts. Pile of laundry is screaming to get clean.... Thanks!
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 04:59 pm |
|
2nd Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
Dryer Vent Vent should be rigid metal. Short lengths of flexible metal may be OK, if not crimped when moving the Dryer into place. NO plastic NO PVC NO screws Foil Duct Tape is OK. With an empty load, Timed Dry, High Heat, the vent temperature should cycle somewhere between 135F and 160F PYE2300AYW Wiring Diagram what "shuts off" ? the Heater or the Motor ? Last edited on Fri Sep 18th, 2009 05:08 pm by RegUS_PatOff ____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 05:08 pm |
|
3rd Post |
|
DwightR Grasshopper
|
Dryer vent not the problem this time. Brain vent wasn't properly connected. Had been testing without front cover in place, which meant no path for "pull" from blower. Element WAS overheating. Sorry to leave out that key piece of info and bother you. Thanks for the assist.
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 06:22 pm |
|
4th Post |
|
DwightR Grasshopper
|
Bigger problem just occurred. Previously, Element was what was shutting off. That problem went away when I put the front panel back in place. I put in a load of damp clothes and started the dryer. All appeared to work well. They had been tumbling for about 3 mins, then I opened the door. Heard a "click" at the back, like a thermostat, and the dryer shut off, but I attributed that to me opening the door. Now the dryer will not start. Dead. Used to be a better handyman than I'm being right now....
|
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 07:03 pm |
|
5th Post |
|
certified tech group 51 Sublime Master of Appliantology
|
Check the thermal fuse at the heater element can..right side below the hi-limit thermostat...little round disc......this one shuts off the motor.... IF this unit has the heater in the upper left, rear...............
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 07:15 pm |
|
6th Post |
|
DwightR Grasshopper
|
Disc is there, but can't get a wire off of one of either of the contacts to isolate it from the ckt before testing continuity. Space too tight and spade clip too tight. When I tested with both wires connected, it showed continuity. My guess is that info isn't helpful....
|
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 07:19 pm |
|
7th Post |
|
DwightR Grasshopper
|
Tried again. Got the wire off. Now disc tests as open. Drives two questions. #1: What caused the problem (that is, what did I do wrong in the previous repair that resulted in this) and how to fix that? #2: How to replace the fuse?
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 08:14 pm |
|
8th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
RegUS_PatOff wrote: ... With an empty load, Timed Dry, High Heat, no need to disconnect to measure continuity if using a digital OHM Meter on the 200 OHM scale ... A good Fuse would read less than 1 OHM (nothing else in the Circuit would give that reading ...) if you have a Harbor Freight Store near you, they have these meters, normally $ 4.99, w/battery but sometimes on sale for $ 2.99 if on sale, print sale page and take to store click on picture  click on picture  OR this one click on picture  click on picture $ 2.99  20% OFF COUPON till 9/21
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 08:35 pm |
|
9th Post |
|
DwightR Grasshopper
|
Have analog multimeter. With one wire off, fuse reads 0 ohms on any scale.
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 09:40 pm |
|
10th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|

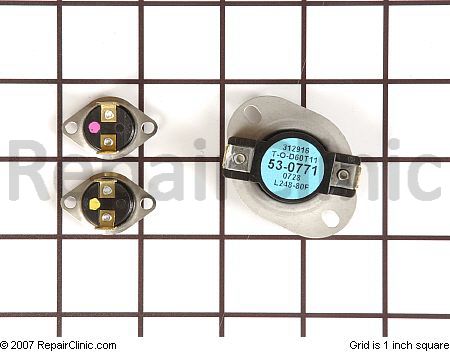

DwightR wrote: Have analog multimeter. With one wire off, fuse reads 0 ohms on any scale. then the Fuse is OK... this small one with the pink dot ?  Last edited on Fri Sep 18th, 2009 09:45 pm by RegUS_PatOff ____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 09:47 pm |
|
11th Post |
|
DwightR Grasshopper
|
No activity whatsoever when plugged in, door shut, and start button pushed. Voltage at wall is fine. Element and motor were running for maybe about 5 mins with damp clothes in the barrel. Element had stayed on after I had replaced the front panel and buttoned everything up. When I opened the door, I heard the click, but the interior didn't seem real hot, in fact seemed a little luke warm, but I chalked that up to the short run time. Then when I shut the door and pushed the start button, nothing happened.
|
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 09:50 pm |
|
12th Post |
|
DwightR Grasshopper
|
Yes, pink dot. But doesn't the fuse open when tripped? If I'm seeing no continuity across it, doesn't that mean it is bad? Sorry, I'm exhausted and stressed over this and other stuff.
|
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 10:13 pm |
|
13th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
DwightR wrote: ...Voltage at wall is fine.... .... Element had stayed on after I had replaced the front panel and buttoned everything up. .... 240v AC across the outer (2) terminals AND 120v AC between the center Terminal and each outer Terminal The Heater Element stayed ON when the Motor wasn't running ?
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 10:18 pm |
|
14th Post |
|
DwightR Grasshopper
|
Voltage measures as should: 240 across legs, 120 between each leg and ground. When motor stopped running, element stopped heating, too.
|
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 10:28 pm |
|
15th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
Does the Timer run ? If yes, then check the voltage across Thermal Fuse while running...
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 10:29 pm |
|
16th Post |
|
DwightR Grasshopper
|
Timer does not run. The machine acts as if it is unplugged. Dead.
|
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 10:45 pm |
|
17th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
Timer should run without depending on Start Switch, Door Switch, or Thermal Fuse ... only needs L1 & Neutral ...
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 10:50 pm |
|
18th Post |
|
DwightR Grasshopper
|
Got it. Dial was set over in the auto-dry setting. When moved to timed setting the timer runs. Fuse still shows 0 ohms.
|
|||||||||||||
| ||||||||||||||
| Posted: Fri Sep 18th, 2009 10:53 pm |
|
19th Post |
|
Pegi Fellow, Academy of Sublime Masters of Appliantology
|
""If I'm seeing no continuity across it, doesn't that mean it is bad?"" Yes...as a test only by-pass that fuse and see if the the dryer runs, if so have to get the fuse kit.....if dryer is still dead with fuse by-passed try resetting both breakers to the dryer for grins....
____________________ Moderator & Assistant Admin. for Servicetechhelp Associaton, Inc. http://www.servicetechhelp.com STH HELPDESK URL.... http://www.servicetechhelp.com/h2desk/ ___________________________________ For Gordon... http://serviceeveryday.com/ |
||||||||||||||
| |||||||||||||||
| Posted: Fri Sep 18th, 2009 10:55 pm |
|
20th Post |
|
RegUS_PatOff Fellow, Academy of Sublime Masters of Appliantology
|
DwightR wrote: Have analog multimeter. With one wire off, fuse reads 0 ohms on any scale. DwightR wrote: ... Fuse still shows 0 ohms. 0 OHMS = good Fuse (unless you're reading your meter wrong)
____________________ RegUS_PatOff http://www.youtube.com/watch?v=oPAY2LsKVEw my video production: “Easter Seals Walk With Me” (also in HQ) http://www.youtube.com/watch?v=-EBiLyYXMiA Upon leaving this Earth "Do you want the Smoking or Non-Smoking section ?" |
|||||||||||||
| ||||||||||||||
